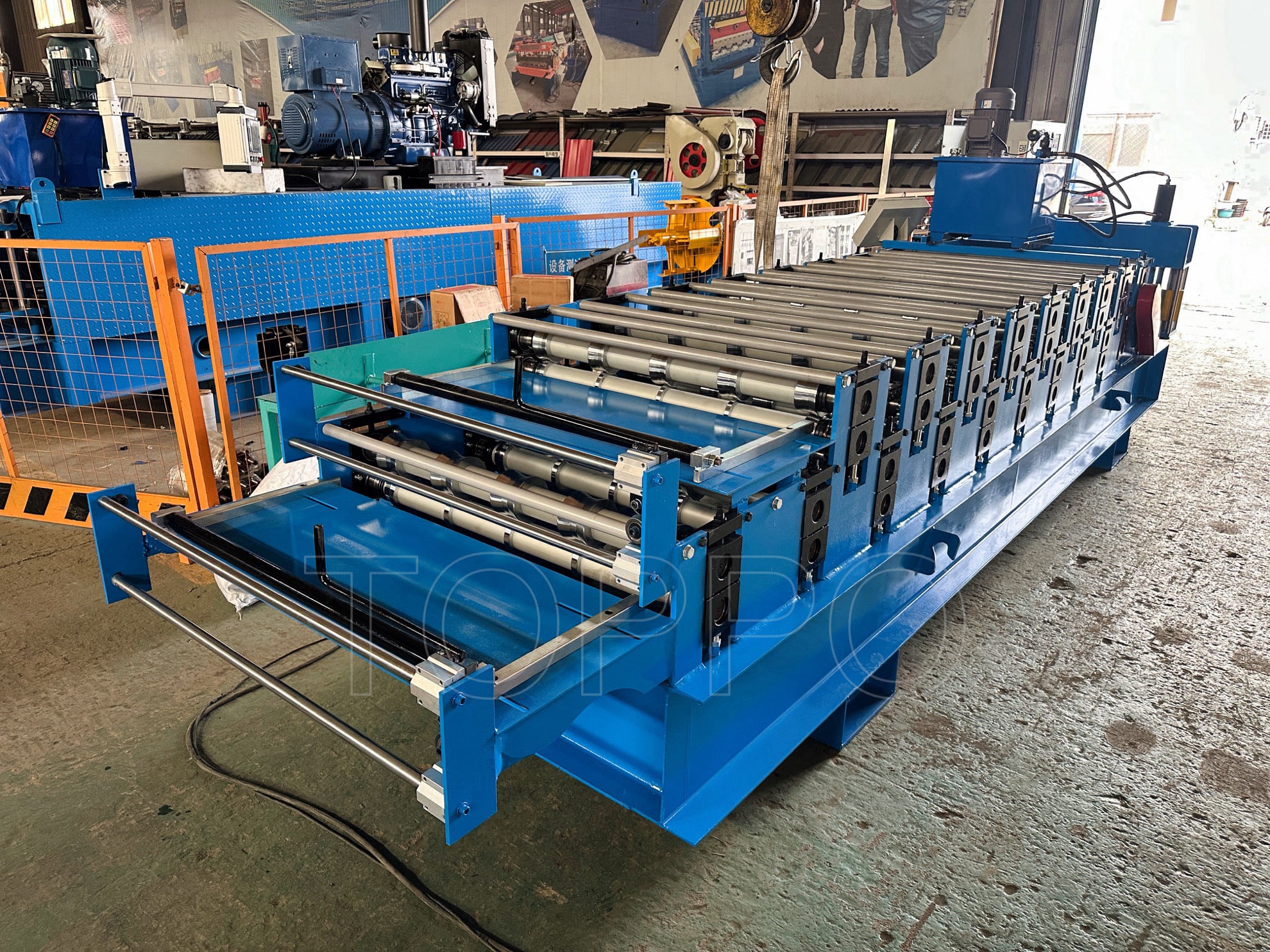

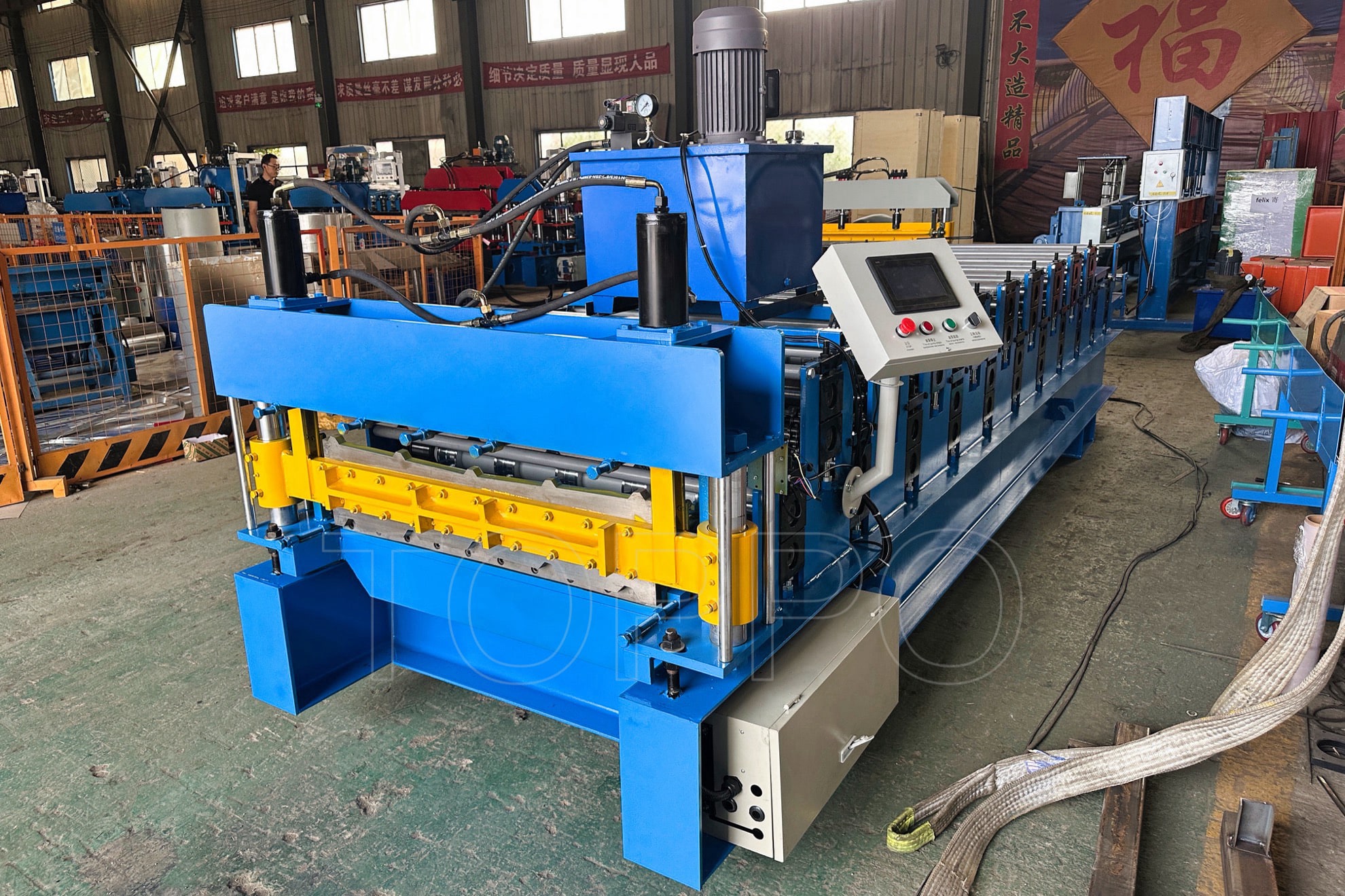

This double layer roll forming machine is designed to manufacture two different roofing sheet profiles within one compact and heavy-duty machine frame. The upper and lower forming layers can be switched according to production requirements, improving flexibility while saving workshop space and investment cost.
The machine adopts cold roll forming technology, high-strength welded steel structure, and CNC precision machined rollers to ensure accurate profile forming and smooth finished panel surface. It is suitable for industrial buildings, warehouses, workshops, commercial facilities, residential houses, and agricultural constructions.
1. Machine Type: Double layer roll forming machine
2. Structure Design: Upper and lower dual layer forming system
3. Forming Technology: Cold roll forming process
4. Profile Type: Corrugated / Trapezoidal roofing sheets
5. Applicable Materials: GI, PPGI, PPGL, Aluminum coils
6. Material Thickness Range: 0.3–0.8 mm
7. Coil Feeding Width: Customized according to drawing
8. Effective Forming Width: As per profile requirement
9. Forming Stations: 14–18 stations per layer

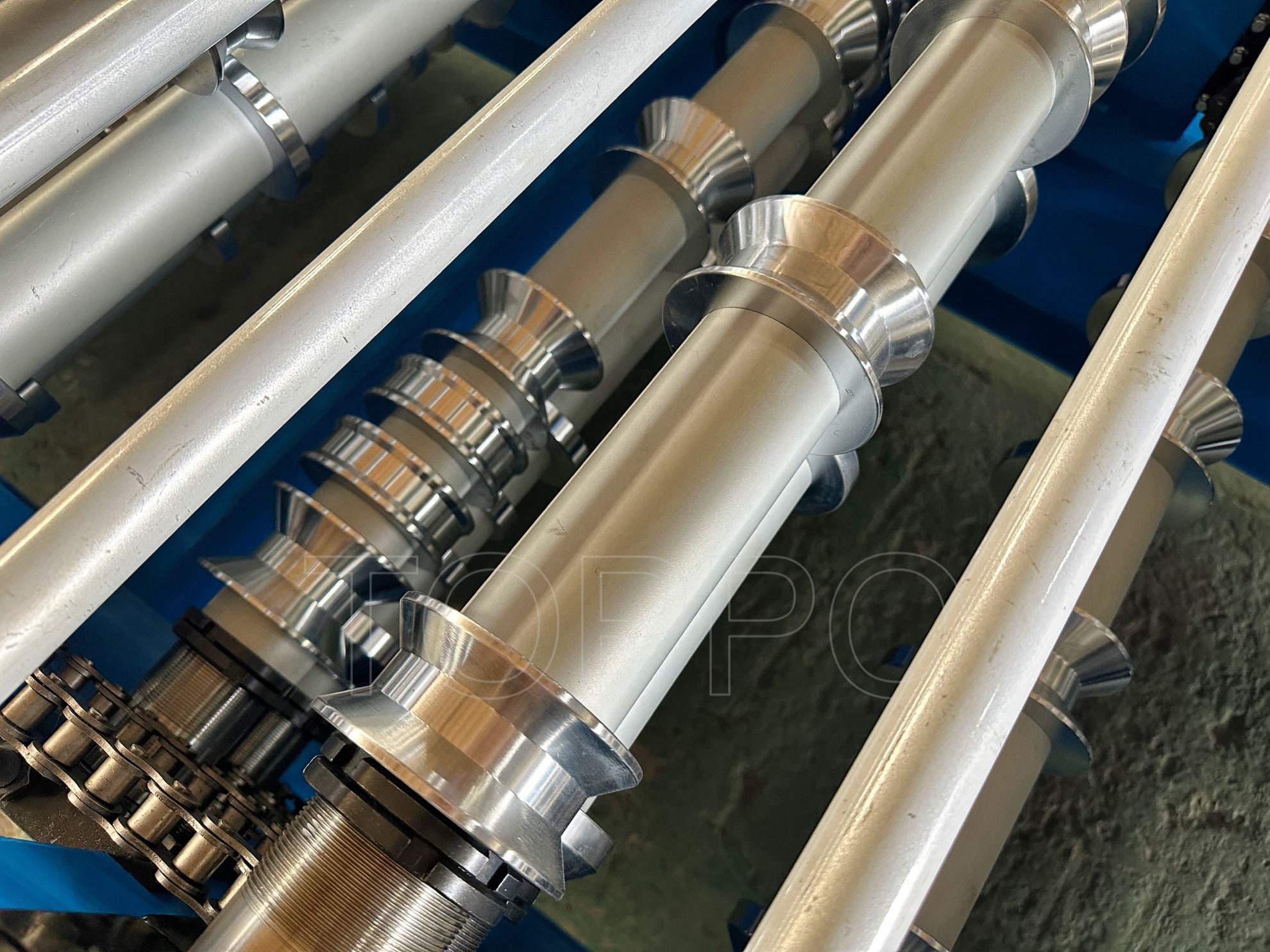

10. Roller Material: 45# forged steel
11. Roller Surface Treatment: Hard chrome plated
12. Shaft Material: 45# high-strength steel
13. Shaft Diameter: 70–80 mm
14. Transmission Mode: Chain drive transmission
15. Gearbox Type: High precision reducer
16. Main Motor Power: 5.5–7.5 kW
17. Hydraulic Station Power: 4 kW
18. Cutting Method: Hydraulic post cutting
19. Cutting Blade Material: Cr12 heat-treated steel
20. Cutting Tolerance: ±2 mm
21. Control System: PLC automatic control
22. Human-Machine Interface: Touch screen operation panel
23. Length Control: Encoder automatic measurement
24. Production Speed: 8–15 m/min
25. Voltage Standard: 380V / 50Hz / 3Phase (customizable)
26. Decoiler Option: Manual or hydraulic decoiler
27. Decoiler Capacity: 5–10 tons

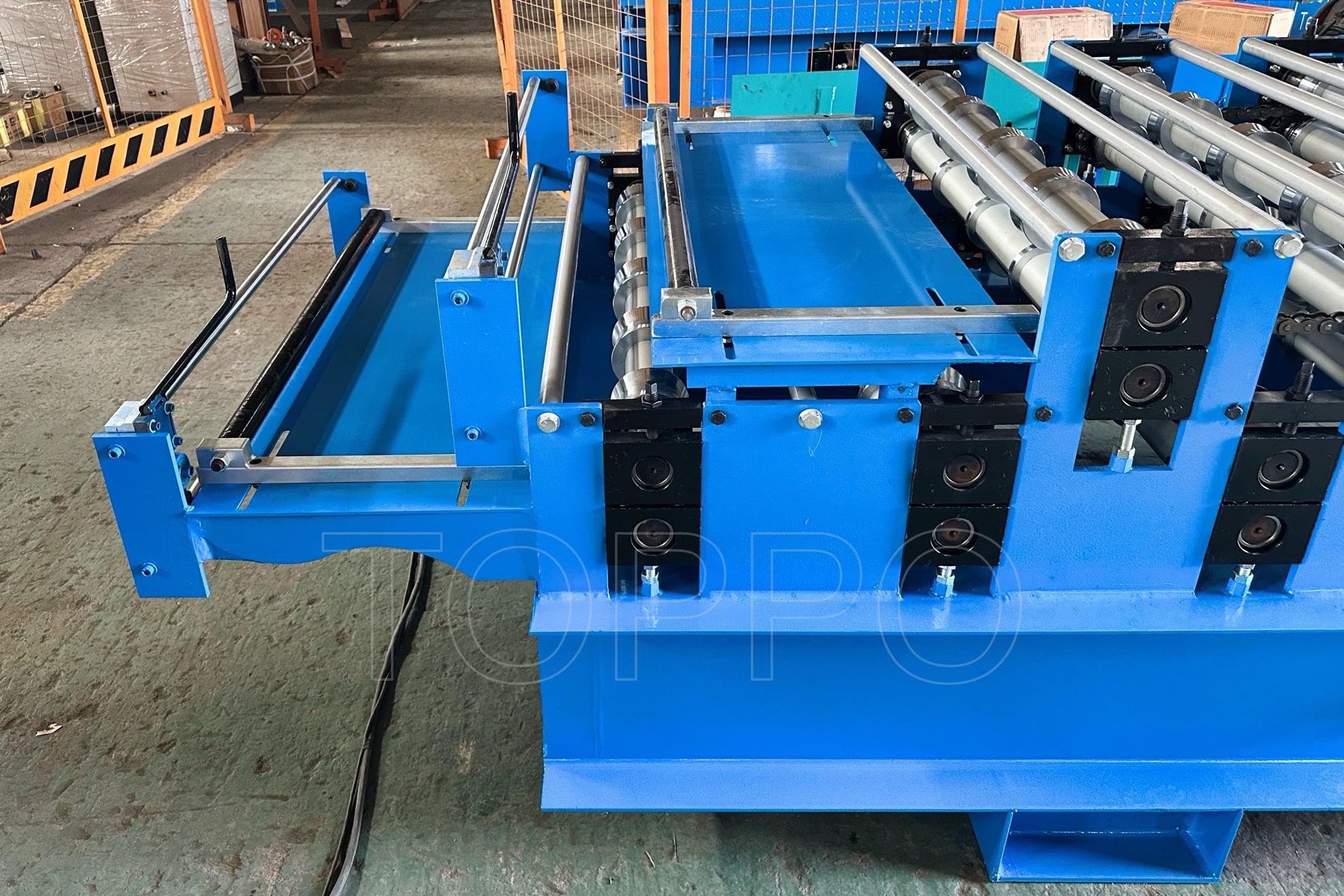

28. Feeding Guide Device: Adjustable guiding system
29. Leveling Device: Integrated leveling rollers
30. Frame Structure: Heavy-duty welded steel base frame
31. Surface Treatment: Anti-corrosion paint coating
32. Machine Color: Customizable
33. Lubrication System: Manual lubrication
34. Safety Protection: Emergency stop button
35. Protective Cover: Optional safety guard
36. Operation Mode: Fully automatic continuous production
37. Noise Level: Low operating noise
38. Finished Panel Surface: Smooth and uniform finish
39. Application: Industrial factories
40. Application: Warehouses
41. Application: Workshops
42. Application: Commercial buildings
43. Application: Residential roofing
44. Application: Agricultural buildings
45. Approximate Machine Weight: 8–12 tons
The double layer design enables two roofing sheet profiles to be produced on a single machine, improving efficiency and reducing floor space requirements. This configuration lowers overall equipment costs compared to two separate production lines.
All forming rollers are CNC machined and chrome plated for durability and high forming precision. The PLC control system ensures easy operation, automatic length setting, and stable production performance.
We provide professional installation support, operator training, technical consultation, and customized solutions based on customer drawings and specific project demands, ensuring reliable long-term operation.
