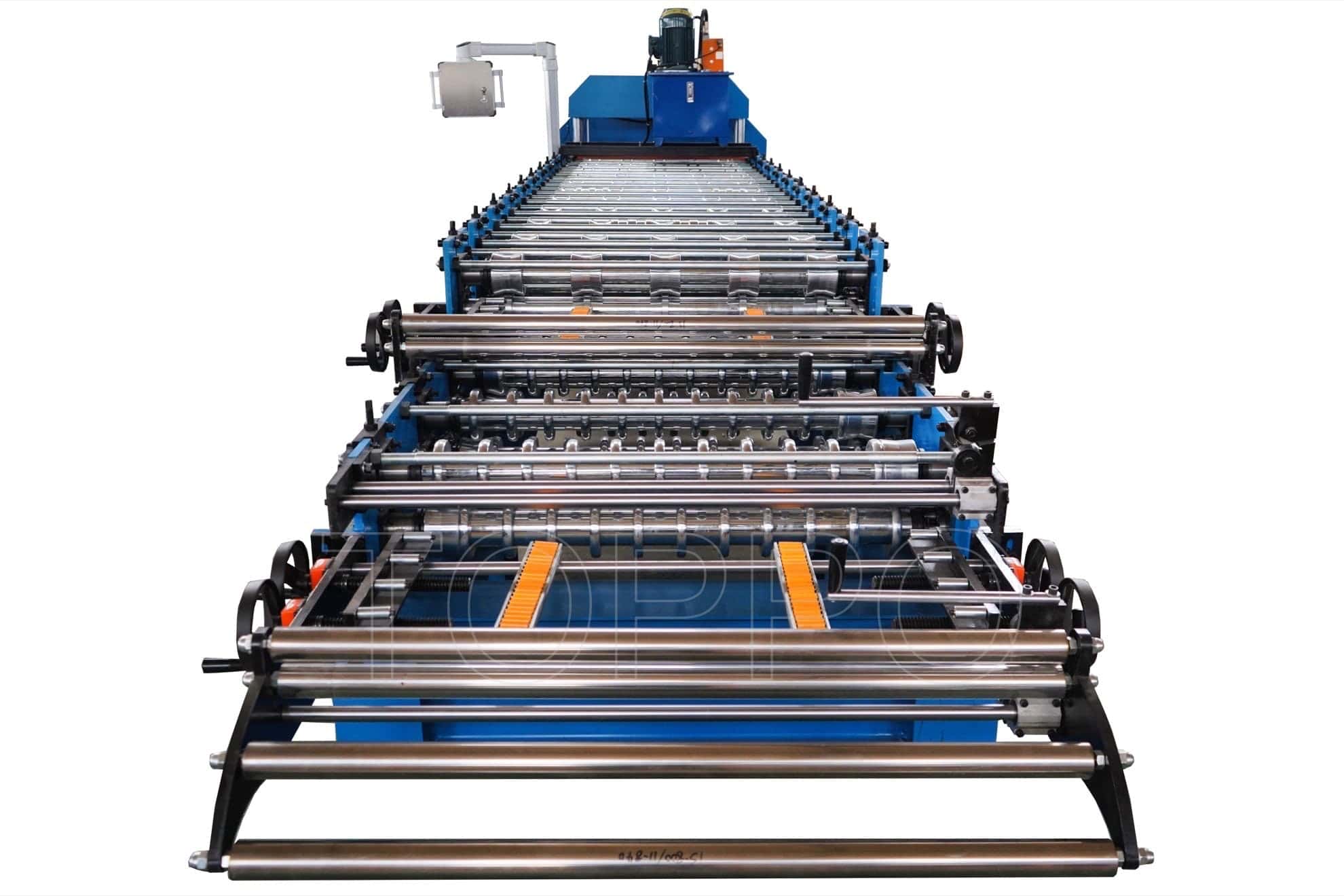

This double layer roll forming machine features a dual-profile system that enables the production of two different roofing sheet designs using a single integrated machine structure. The upper and lower forming layers can be selected based on production requirements, maximizing flexibility while minimizing investment cost and workshop space.
With a reinforced welded steel base and precision CNC-machined rollers, the machine ensures accurate forming dimensions, smooth finished surface, and consistent panel quality. It is widely applied in industrial buildings, steel structure workshops, warehouses, logistics centers, commercial projects, and residential roofing construction.
1. Machine Category: Double layer roll forming machine
2. Structure Design: Upper and lower dual forming layers
3. Forming Technology: Cold roll forming process
4. Profile Types: Corrugated / Trapezoidal roofing sheets
5. Raw Materials: GI, PPGI, PPGL, Aluminum coils
6. Thickness Range: 0.3–0.8 mm
7. Coil Feeding Width: Customized according to profile drawing
8. Effective Forming Width: As per profile design
9. Forming Stations: 14–18 stations per layer
10. Roller Material: 45# forged steel
11. Roller Surface: Hard chrome plated
12. Shaft Material: High-strength 45# steel
13. Shaft Diameter: 70–80 mm
14. Drive System: Chain drive transmission
15. Reducer: High precision gearbox
16. Main Motor Power: 5.5–7.5 kW
17. Hydraulic Station Power: 4 kW
18. Cutting Type: Hydraulic post cutting
19. Cutting Blade Material: Cr12 heat-treated steel
20. Cutting Precision: ±2 mm
21. Control System: PLC automatic control
22. Human-Machine Interface: Touch screen panel
23. Length Control: Encoder automatic measurement
24. Production Speed: 8–15 m/min
25. Voltage Standard: 380V / 50Hz / 3Phase (customizable)
26. Decoiler Option: Manual or hydraulic decoiler
27. Decoiler Capacity: 5–10 tons
28. Feeding Guide: Adjustable guiding device
29. Leveling System: Integrated leveling rollers
30. Frame Structure: Heavy-duty welded steel frame
31. Surface Treatment: Anti-corrosion paint coating
32. Machine Color: Customizable
33. Lubrication: Manual lubrication system
34. Safety Device: Emergency stop button
35. Protective Cover: Optional safety guard
36. Operation Mode: Fully automatic continuous forming
37. Noise Level: Low noise operation
38. Finished Panel Surface: Smooth and uniform
39. Application: Industrial factories
40. Application: Warehouses
41. Application: Workshops
42. Application: Commercial buildings
43. Application: Residential houses
44. Application: Agricultural structures
45. Approximate Weight: 8–12 tons
The dual-layer design significantly increases production efficiency by allowing two different roofing sheet profiles to be manufactured on one machine. This reduces equipment investment and saves valuable workshop space.
Precision-machined chrome-plated rollers guarantee long service life and excellent forming accuracy. The PLC control system enables automatic length and quantity setting, ensuring convenient operation and reliable performance.
We provide full technical support including installation guidance, commissioning assistance, operator training, and customized configuration services based on customer drawings and project requirements.
